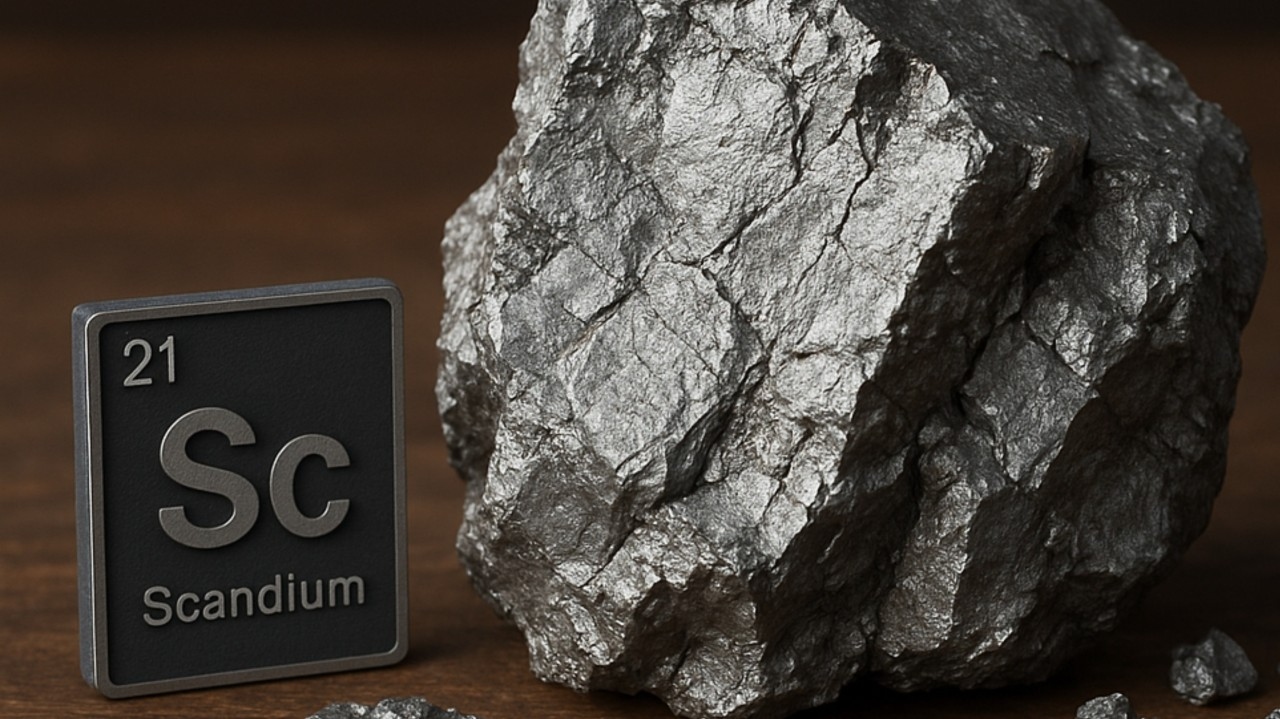

Scandium (Sc)
Successfully mobilized within our continuous flow process. High-purity scandium oxide finds fundamental applications in advanced aerospace alloys, defense electronics, solid oxide fuel cells, and high-intensity lighting.
● TECHNOLOGY
Turning an Industrial Liability into a Strategic Mineral Asset
ADVANCED RECOVERY
Advanced Soda–Alkali Multi-Metal Recovery from Rare Earth
We transform rare earth red mud—once an industrial byproduct—into high-value resources through our clean, integrated soda–alkali process. Our technology recovers critical metals and produces a range of valuable co-products with efficiency and environmental responsibility.
OUR INTEGRATED RECOVERY PROCESS
1. LEACHING
Soda-alkali leaching unlocks metals from red mud.
2. SOLVENT EXTRACTION
Selective separation of target metals.
3. PRECIPITATION
Metals are precipitated with high purity.
4. PURIFICATION
Advanced purification ensures product quality.
5. PRODUCT FINISHING
Final processing for market-ready products.
6. MULTI-METAL RECOVERY
Maximizing value from every ton of red mud.
VALUABLE OUTPUTS
26FeIronOxides & Pigments
22TiTitaniumTiO₂ Concentrate
40ZrZirconiumZrO₂ Grade
21ScScandiumSc₂O₃ Oxide
13AlAluminosilicateMaterials
20CaCalciumCarbonate
14SiSiliconSiO₂ Dioxide
BUILT FOR VALUE. DESIGNED FOR IMPACT.
CLEAN & EFFICIENT
Environmentally friendly process with minimal waste.
RESOURCE POSITIVE
Converts industrial waste into high-value, marketable products.
SUSTAINABLE VALUE
Strengthening supply chains with critical materials for the future.
PROCESS ARCHITECTURE

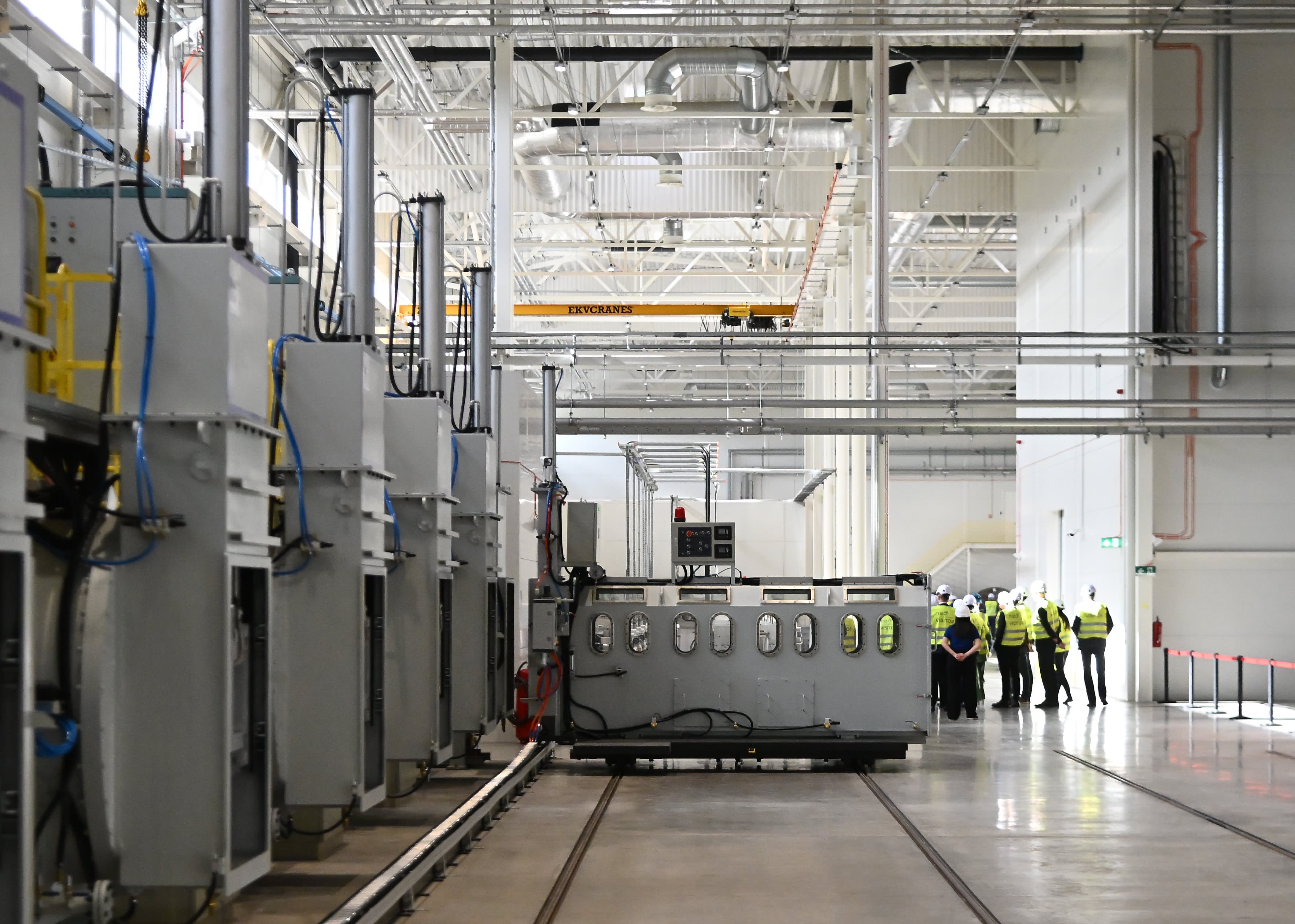

Integrated Process Architecture
Our technology, based on patented soda–alkali processing architecture, transforms this residue into a structured multi-stage mineral recovery system operating at atmospheric pressure, moderate temperatures (70–100°C), continuous-flow configuration, and with closed-loop reagent recovery.
Alkaline Aluminum Extraction
NaOH-Based: Two-stage caustic leaching under controlled thermal conditions.
Carbonate Leaching of Strategic Metals
Na₂CO₃ / NaHCO₃ System: Selective mobilization of Ti, Zr, Sc, and REEs.
CO₂-assisted precipitationCold plasma activationSequential fractionationIron enrichmentReagent regeneration
EXTRACTION PROCESS
Stage-by-Stage Mineral Recovery
01
STAGE 1

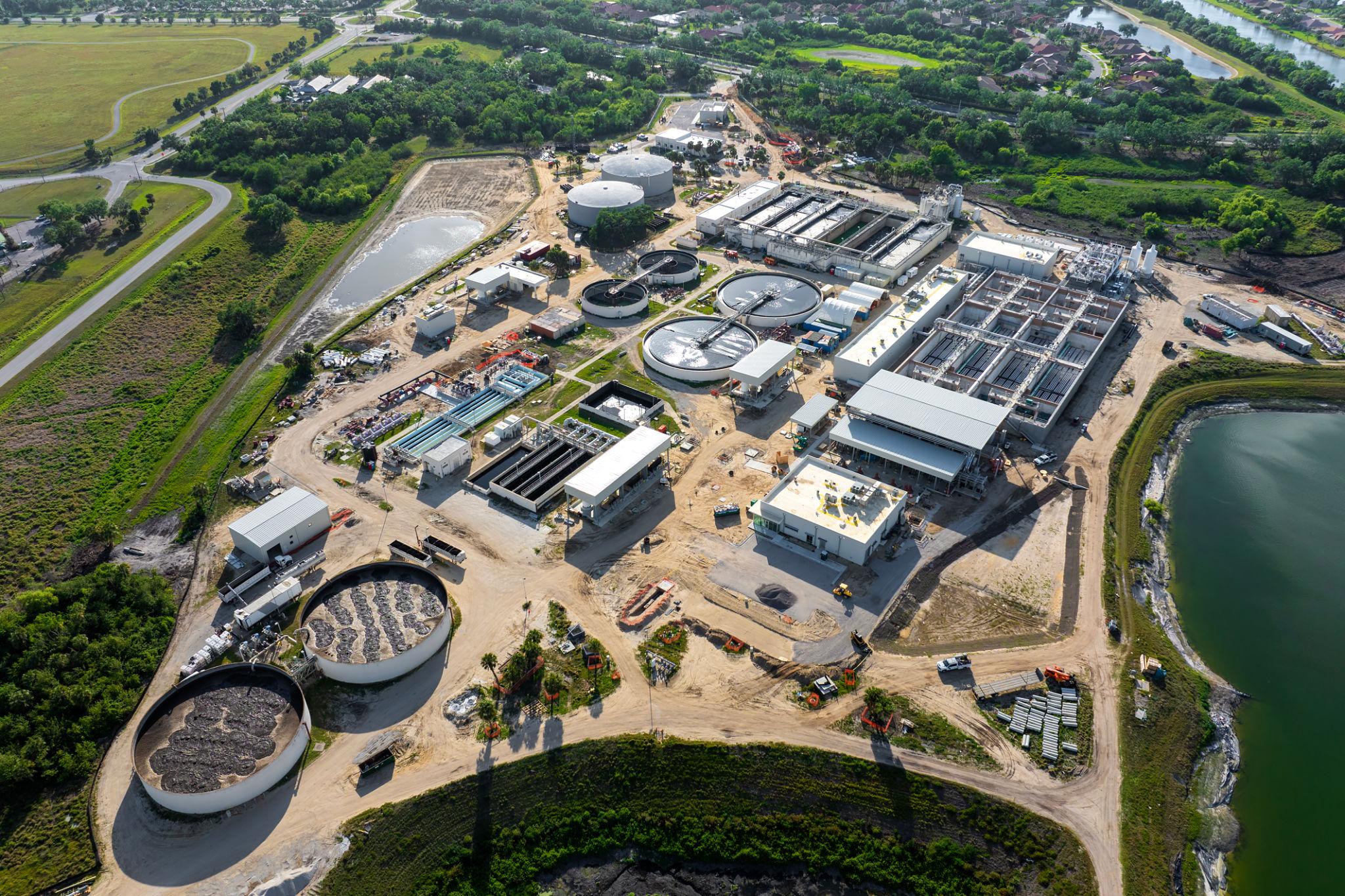

Pulp Extraction & Feedstock Conditioning
Objective: Convert stored rare earth into a stable, process-controlled pulp suitable for selective extraction.
- Pulp extracted via dredging from wet storage
- Mechanical homogenization
- Filtration using centrifuge or filter press
- Liquid-to-solid ratio ~5:1
Ensures process uniformity across Indian, Australian, Middle Eastern, and North American residues.
02
STAGE 2

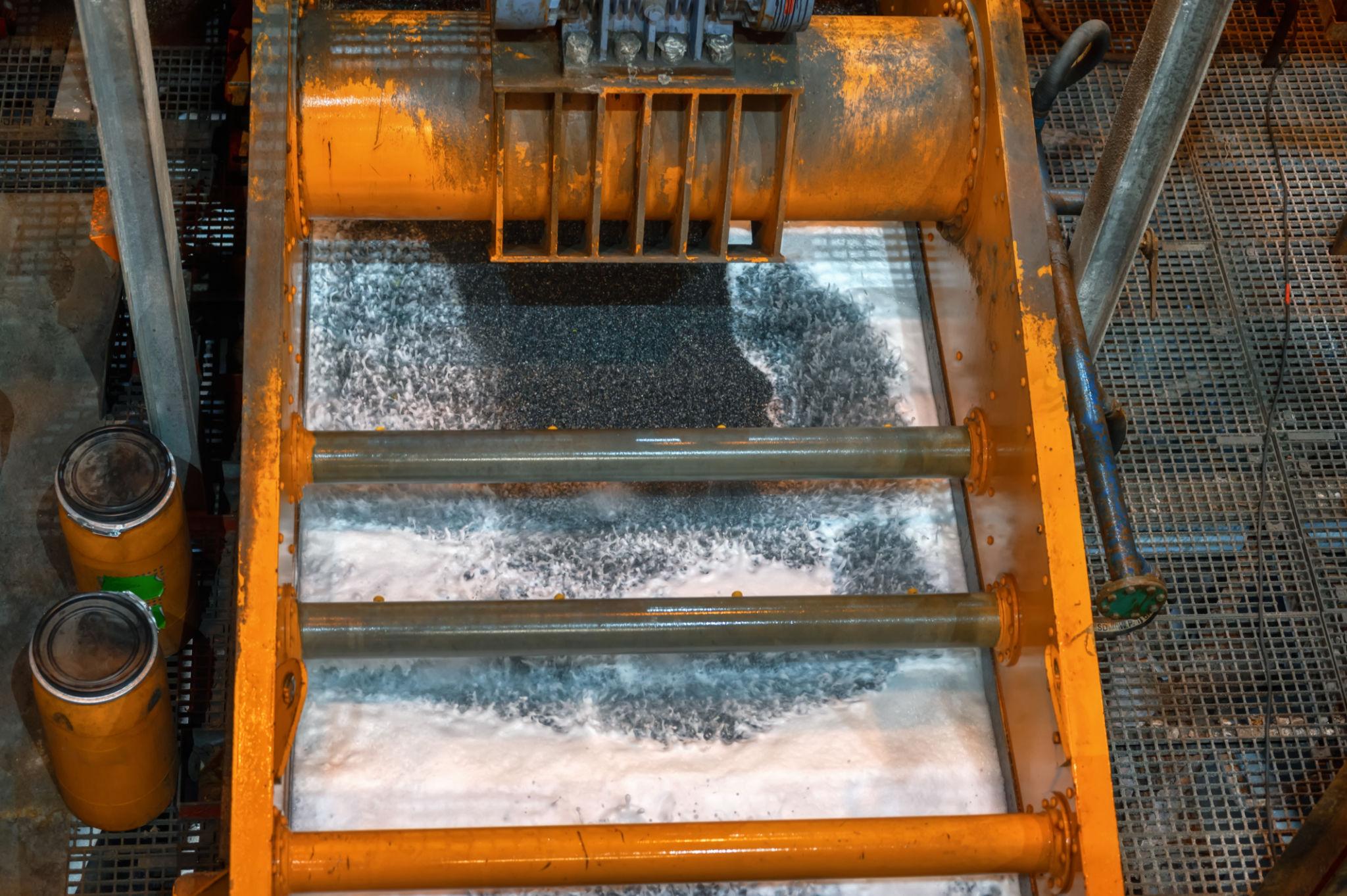

Two-Stage Aluminum Recovery
Objective: Extract residual aluminum while enriching the solid phase in iron and critical metals.
- NaOH concentration ~4M at ~100°C
- First-Stage NaOH Leaching → Filtration
- CO₂-Assisted Precipitation (~75°C)
- Second-Stage NaOH Leaching
Extracts up to ~40% aluminum. Uses industrial exhaust CO₂ streams.
03
STAGE 3

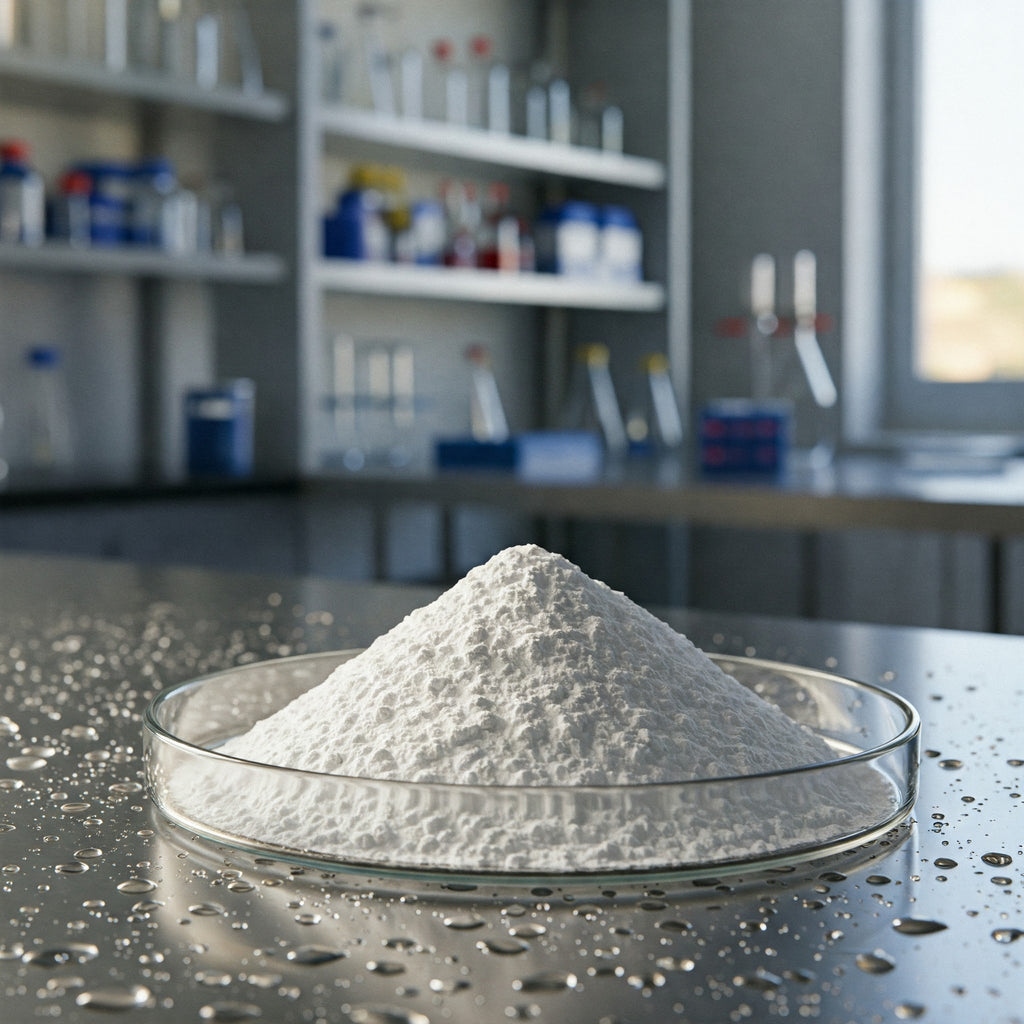

Carbonate Leaching of Ti, Zr, Sc & REEs
Objective: Selective mobilization of strategic and high-value metals.
- Na₂CO₃ + NaHCO₃ solution (~2M) at ~70°C
- Cold plasma & electromagnetic activation
- Electric pulse action (EPA)
- CO₂ pre-saturation at atmospheric pressure
Up to ~60% Scandium, ~50% Zirconium, and ~50% REEs extracted.
04A
STAGE 4A
Fractionated Metal Recovery: Titanium
Dissolved metals are separated sequentially through controlled precipitation — not recovered as a mixed concentrate.
- Precipitation at ~75°C
- NaOH-assisted precipitation
- Coagulant addition
- Ultrasound enhancement
Output: TiO₂ concentrate suitable for pigment, alloy, and industrial use.
04B
STAGE 4B
Zirconium, Scandium & REE Recovery
Conditions: Heated to ~100°C, NaOH ~4M, pH ~14, Aluminum-based coagulant.
- Zirconium oxide (ZrO₂)
- Scandium oxide (Sc₂O₃)
- Yttrium oxide, Dysprosium & Gadolinium compounds
Suitable for aerospace ceramics, permanent magnets, defense, and energy transition technologies.
FIN
FINAL SOLID MANAGEMENT
Iron Enrichment
After sequential extraction, the solid phase is enriched to ~60% Fe, then neutralized to pH 7–9.
- Iron pigments
- Pellets & Coagulants
- Smelting feedstock
The remaining aluminosilicate matrix is mineralogically stabilized.
SUSTAINABILITY

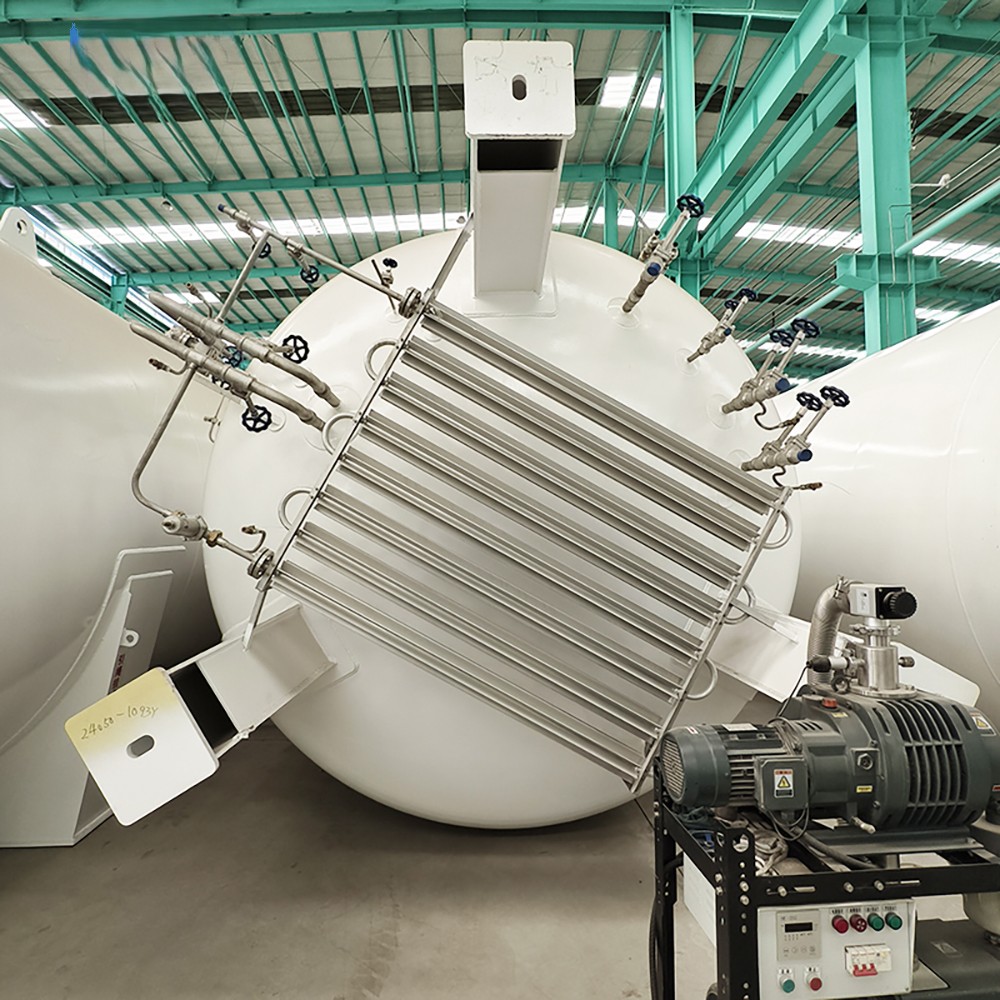

Reagent Recovery & CO₂ Integration
The system incorporates a fully closed-loop design that significantly reduces fresh chemical input, waste generation, carbon intensity, and operating expenditure.
NaOH & Na₂CO₃ Regeneration
Reagent loops recover and reuse leaching chemicals at industrial scale.
CO₂ Capture & Reinjection
Industrial exhaust CO₂ is stored and reinjected directly into the precipitation stages.
Zero Net Waste Target
Every output stream is a saleable product — from iron pigments to aluminosilicate materials.
STRATEGIC RARE EARTHS
Targeted Critical Metals

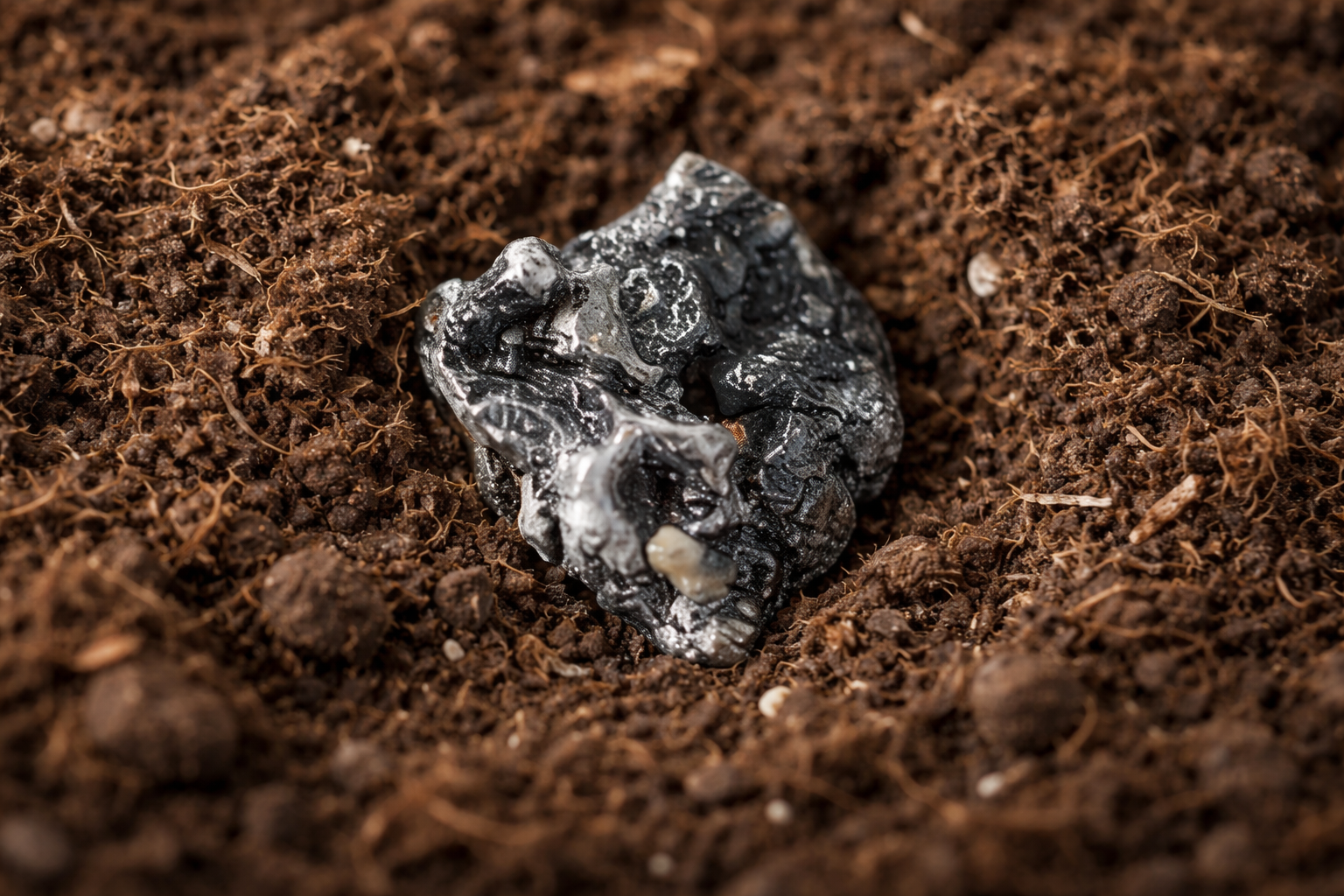

Yttrium (Y)
Plays a critical position in high-technology manufacturing. Our fractionated recovery isolates Yttrium oxide which is heavily used in laser systems, aerospace alloys, and advanced ceramics.
Dysprosium (Dy)
Crucial for enabling clean energy technologies. Dysprosium compounds operate as critical inputs for high-temperature permanent magnets, EV motors, and advanced wind turbines.
Gadolinium (Gd)
Serving highly specific tech roles across industries. The isolated Gadolinium is a vital component used deeply in MRI contrast agents, nuclear neutron absorption, and medical electronic systems.
THE ADVANTAGE
Industrial Deployment Advantages
A commercially proven, scalable solution built around existing infrastructure — no greenfield risk, no new mining, no speculative chemistry.
Atmospheric-pressure chemistry
Moderate temperature (70–100°C)
Continuous-flow design
Brownfield refinery integration
Multi-element economics
No exploration risk
Feedstock already mined & surface-stored
This is not a waste-treatment system.
It is a critical-minerals recovery platform engineered for scale, security, and permanence.
